Learning Rate Decay * {1cycle}

Description

Learning Rate Decay helps gradually reduce the value of \(\alpha\) so the model can move more smoothly and accurately toward the global minimum.

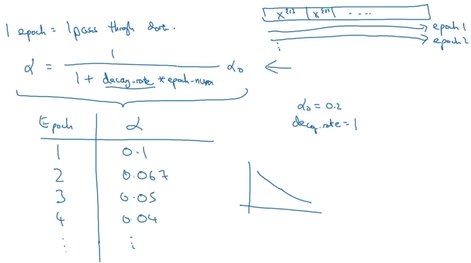

In the image above:

  • Each epoch means one full pass over all the mini-batches.
  • The decay rate is a number that indirectly controls how much \(\alpha\) decreases in each epoch.

Varieties

With an Exponential Schedule, the learning rate is multiplied by a constant factor \(\gamma\) at fixed intervals (usually every epoch).

For instance, if \(\gamma = 0.9\):

  • After 10 epochs the learning rate is about 35% of the initial value.
  • After 20 epochs, it is about 12%.

With Cosine Annealing, the learning rate follows a smooth cosine curve that gradually decreases from a maximum value to a minimum value over a fixed number of epochs (or steps).

For instance:

  • At the halfway point (\(t = T/2\)), the learning rate is roughly half of the initial range.
  • Near the end (\(t \approx T\)), the learning rate becomes very small and approaches \(\eta_{\min}\) smoothly, without sudden drops.

Performance Scheduling, also called Adaptive Scheduling, keeps track of a given metric during training—typically the validation loss—and if this metric stops improving for some time, it multiplies the learning rate by some factor.

1cycle Scheduling increases the learning rate from a lower starting value to a high maximum value during the first part of training, then decreases it back to a very small value during the second part.

This schedule is designed to:

  • Help the model escape sharp or poor minima early (using a high LR),
  • Then converge smoothly at the end (using a very low LR).

It typically follows three phases:

  1. Warm-up: \(\eta\) increases linearly from \(\eta_{\min}\) to \(\eta_{\max}\) over the first half of the cycle.
  2. Cool-down: \(\eta\) decreases linearly from \(\eta_{\max}\) back to \(\eta_{\min}\) over the second half.
  3. Final Annealing: A very short final phase where \(\eta\) drops far below \(\eta_{\min}\) to help the model settle.

Formula

\[ \eta_{t} = \eta_{\max} \times \gamma^{t} \]
  • \(\eta_{t}\): learning rate of the current epoch
  • \(t\): the current epoch
  • \(\eta_{\max}\): the maximum (initial) learning rate

Info

You usually choose \(\gamma < 1\) but close to 1 so the learning rate decreases slowly.

\[ \eta_{t} = \eta_{\min} + \frac{1}{2}(\eta_{\max} - \eta_{\min}) \left(1 + \cos\left(\frac{t \pi}{T_{\max}}\right)\right) \]
  • \(\eta_{t}\): learning rate of the current epoch
  • \(t\): the current epoch
  • \(\eta_{\max}\): the maximum (initial) learning rate
  • \(\eta_{\min}\): the minimum (final) learning rate
  • \(T_{\max}\): the total number of epochs for one cosine cycle

Info

At the start (\(t = 0\)), the learning rate is at its maximum. As training progresses, the cosine function smoothly reduces the learning rate until it reaches \(\eta_{\min}\) at \(t = T\).

If metric does not improve for \(\text{patience}\) epochs:

\[ \eta_{\text{new}} = \eta_{\text{old}} \times \text{factor} \]
  • \(\eta_{\text{new}}\): the new learning rate
  • \(\eta_{\text{old}}\): previous learning rate
  • \(\text{factor}\): multiplier < 1 (e.g., 0.1)
  • \(\text{patience}\): epochs without improvement

Example

import torch.optim as optim

model = ...
optimizer = optim.AdamW(model.parameters(), lr=1e-3, weight_decay=0.01)
scheduler = optim.lr_scheduler.ExponentialLR(optimizer, gamma=0.9)

for epoch in range(n_epochs):
    for X_batch, y_batch in train_loader:
        ...  # The rest of the training loop

    scheduler.step()

import torch.optim as optim

model = ...
optimizer = optim.AdamW(model.parameters(), lr=1e-3, weight_decay=0.01)
scheduler = optim.lr_scheduler.CosineAnnealingLR(optimizer, T_max=20, eta_min=1e-3)

for epoch in range(n_epochs):
    for X_batch, y_batch in train_loader:
        ...  # The rest of the training loop

    scheduler.step()

Info

Cosine annealing needs \(T_{\max}\) and \(\eta_{\min}\), and it's difficult to predict the right training length. So many people prefer performance–driven LR schedulers instead.

import torch
import torch.optim as optim
import torchmetrics
from torch.utils.data import DataLoader

# =========================
# Init
# =====
torch.manual_seed(42)
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")

# =========================
# Load Data
# =====
train_loader = DataLoader(...)
valid_loader = DataLoader(...)

# =========================
# Model
# =====
model = ...

# =========================
# Evaluation Function
# =====
def evaluate_func(model, data_loader, metric):
    model.eval()
    metric.reset()  # Reset the metric at the beginning

    with torch.no_grad():
        for X_batch, y_batch in data_loader:
            X_batch = X_batch.to(device)
            y_batch = y_batch.to(device)

            y_pred = model(X_batch)
            metric.update(y_pred, y_batch)  # Update at each iteration

    return metric.compute()  # Compute the final result at the end

# =========================
# Training Loop
# =====
model.train()
optimizer = optim.AdamW(model.parameters(), lr=1e-3, weight_decay=0.01)
scheduler = optim.lr_scheduler.ReduceLROnPlateau(optimizer, mode="max", patience=2, factor=0.1)
accuracy_metric = torchmetrics.Accuracy(task="multiclass", num_classes=10).to(device)
n_epochs = 20

for epoch in range(n_epochs):
    for X_batch, y_batch in train_loader:
        ...  # The rest of the training loop

    val_metric = evaluate_func(model, valid_loader, accuracy_metric).item()
    scheduler.step(val_metric)

Info

Hyperparameters:

  • mode: Use max when the metric should increase (e.g., accuracy); use min when it should decrease (e.g., loss).
  • patience: How many epochs to wait without improvement before lowering the learning rate.
  • factor: The multiplier applied to reduce the learning rate when no improvement is seen.
import torch.optim as optim

model = ...
optimizer = optim.AdamW(model.parameters(), lr=1e-3, weight_decay=0.01)
n_epochs = 20
scheduler = optim.lr_scheduler.OneCycleLR(
    optimizer,
    max_lr=0.01,
    epochs=n_epochs,
    steps_per_epoch=len(train_loader),
    pct_start=0.3,  # 30% of steps for warm-up
)

for epoch in range(n_epochs):
    for X_batch, y_batch in train_loader:
        ...  # The rest of the training loop
        scheduler.step()  # Note: 1cycle scheduling is usually applied per batch/step, not per epoch!

Info

Hyperparameters:

  • max_lr: The highest learning rate in the cycle.
  • total_steps: The total number of steps/iterations in the training run. This is crucial for defining the cycle length.
  • pct_start: The percentage of the total steps used for the warm-up phase (increasing \(\eta\)).
