Data Types

String:

Data Type Description

keyword Not analyzed, used for exact matches

text Analyzed for full-text search

binary Binary data, encoded as base64

Numeric:

Data Type	Description	Range
byte	8-bit signed integer	-128 to 127
short	16-bit signed integer	-32,768 to 32,767
integer	32-bit signed integer	-2,147,483,648 to 2,147,483,647
long	64-bit signed integer	-9,223,372,036,854,775,808 to 9,223,372,036,854,775,807
float	Single-precision floating point	Approx. ±3.4 × 10^38
double	Double-precision floating point	Approx. ±1.7 × 10^308

Date and time:

Data Type Description

date Date and time values, format defined by the user
Boolean:

Data Type Description

boolean True or false
Vector:

Data Type Description

dense_vector Vector with fixed dimensions

sparse_vector Vector with variable dimensions

Document

Simple query:

curl -X GET "http://localhost:9200/_search?pretty" -u <username_and_password: elastic:pass123>

Complex query:

curl -X GET "http://localhost:9200/<index_name>/<_search or _count>?pretty" -H 'Content-Type: application/json' -d '{
  "from": <offset: 5>,
  "size": <limit: 20>,
  "_source": ["<field_1>", "<field_2>"],
  "query": {
    "bool": {
      "must": {
        "match": {"<field>": "<value>"}
      }
    }
  },
  "runtime_mappings": {
    "<custom_field>": {
      "type": "<field_type_in_java_format: double>",
      "script": {
        "source": "emit(doc[\"<another_field>\"].value * 2)"
      }
    }
  },
  "sort": [
    {"<field1>": "asc"},
    {"<field2>": "asc"}
  ]
}'

Aggregate:

curl -X GET "http://localhost:9200/<index_name>/_search?pretty" -H 'Content-Type: application/json' -d '{
  "size": 0,  # will only return aggregate results
  "aggs": {
    "<agg_name_1>": {"avg": {"field": "<field>"}},
    "<agg_name_2>": {
      "filter": {"match": {"<field>": "<value>"}},
      "aggs": {
        "<nested_agg_name_1>": {"avg": {"field": "<field>"}}
      }
    }
  }
}'

Create:

curl -X POST "http://localhost:9200/<index_name>/_doc?pretty" -H 'Content-Type: application/json' -d '{
  "<field>": "<value>"
}'

Update:

# fully replace
curl -X PUT "http://localhost:9200/<index_name>/_doc/<_id>?pretty" -H 'Content-Type: application/json' -d '{
  "<field>": "<value>"
}'

Get:

# return document and its related data
curl -X GET "http://localhost:9200/<index_name>/_doc/<_id>?pretty"

# return document only
curl -X GET "http://localhost:9200/<index_name>/_source/<_id>?pretty"

Delete:

curl -X DELETE "http://localhost:9200/<index_name>/_doc/<_id>?pretty"

Bulk:

Provides a way to perform multiple index, create, delete, and update actions in a single request.

The index and create actions expect a source on the next line.
update expects that the partial doc, upsert, and script and its options are specified on the next line.
delete does not expect a source on the next line

# Tip: Because this format uses literal `\n`'s as delimiters, make sure that the JSON actions and sources are not pretty printed

curl -X POST "http://localhost:9200/<index_name>/_bulk?pretty" -H 'Content-Type: application/json' -d '
{"index": {"_id": "<document_id>"}}
{"<field>": "<value>"}
{"delete": {"_id": "<document_id>"}}
{"create": {"_id": "<document_id>"}}
{"<field>": "<value>"}
{"update": {"_id": "<document_id>"}}
{"doc": {"<field>": "<value>"}}
'

Index

Get all with aliases:

curl -X GET "http://localhost:9200/_aliases?pretty"

Get all with disk sizes:

curl -X GET "http://localhost:9200/_cat/indices?v&h=index,store.size"

Create simple:

curl -X PUT "http://localhost:9200/<index_name>?pretty"

Create with mapping:

curl -X PUT "http://localhost:9200/<index_name>?pretty" -H 'Content-Type: application/json' -d '{
  "mappings": {
    "dynamic": "<dynamic_type: strict>",
    "properties": {
      "<field>": {
        "type": "<data_type>"
      }
    }
  }
}'

Alias:

# Tip: The `remove` action will remove this alias from other indices

curl -X POST "http://localhost:9200/_aliases?pretty" -H 'Content-Type: application/json' -d'{
  "actions": [
    {
      "remove": {
        "index": "*",
        "alias": "<alias_name>"
      }
    },
    {
      "add": {
        "index": "<index_name>",
        "alias": "<alias_name>"
      }
    }
  ]
}'

Delete:

# One index
curl -X DELETE "http://localhost:9200/<index_name>?pretty"

# Multiple indices
curl -X DELETE "http://localhost:9200/<index1>,<index2>,<index3>?pretty"

# All (it needs: `action.destructive_requires_name=false`)
curl -X DELETE "http://localhost:9200/*?pretty"

Clone:

# Make the source index readonly
curl -X PUT "http://localhost:9200/<source_index_name>/_settings?pretty" -H 'Content-Type: application/json' -d'
{
  "settings": {"index.blocks.write": true}
}'

# Clone
curl -X POST "http://localhost:9200/<source_index_name>/_clone/<destination_index_name>?pretty"

# Make the source index write able
curl -X PUT "http://localhost:9200/<source_index_name>/_settings?pretty" -H 'Content-Type: application/json' -d'
{
  "settings": {"index.blocks.write": false}
}'

Reindex:

curl -X POST "http://localhost:9200/_reindex?pretty" -H 'Content-Type: application/json' -d'{
  "source": {"index": "<source_index_name>"},
  "dest": {"index": "<destination_index_name>"}
}'

Mapping

Get current:

curl -X GET "http://localhost:9200/<index_name>/_mapping?pretty"

Create or update:

# Tip: We can't change the mapping or field type of an existing field. Changing an existing field could invalidate data that's already indexed

curl -X PUT "http://localhost:9200/<index_name>/_mapping?pretty" -H 'Content-Type: application/json' -d '{
  "dynamic": "<dynamic_type: strict>",
  "properties": {
    "<field>": {
      "type": "<data_type>"
    }
  }
}'

Delete: There is no way to delete a field from mapping. Even if you delete all documents that contain this field

Node

Get all with disk sizes:

curl -X GET "http://localhost:9200/_cat/nodes?v&h=name,disk.total,disk.used,disk.avail"

Other

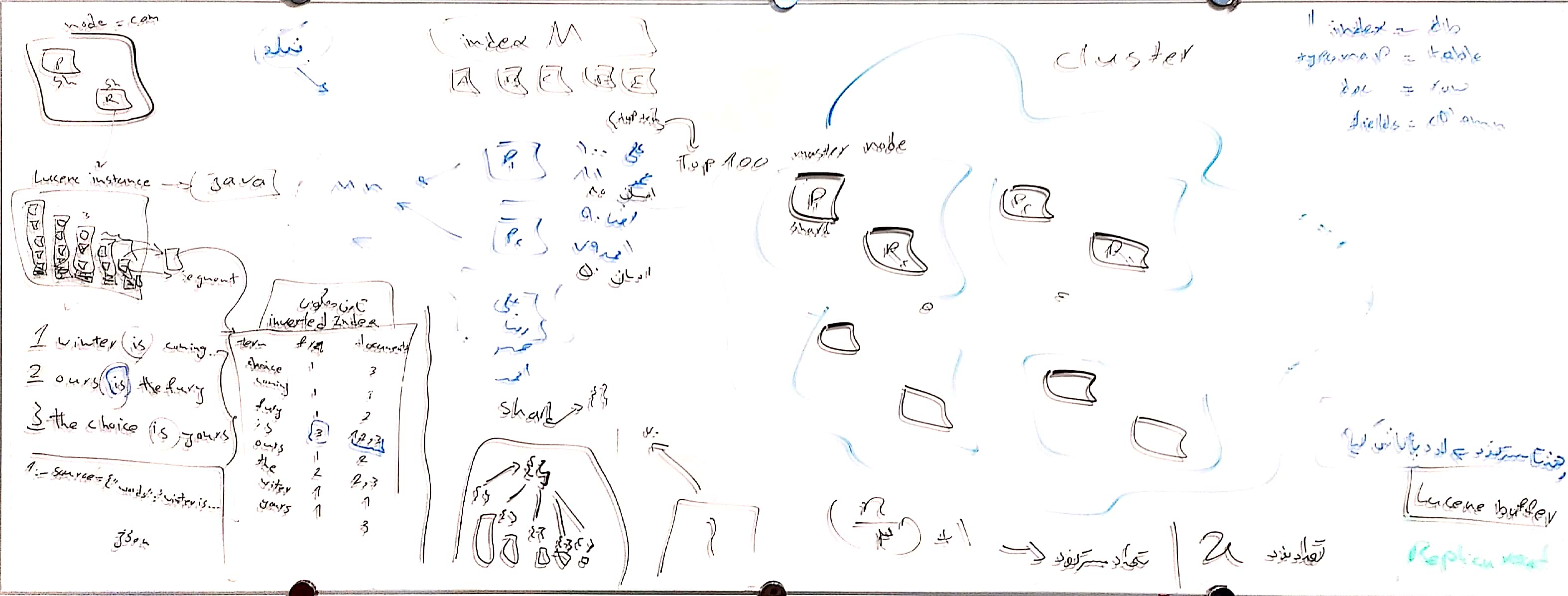

Clustering:

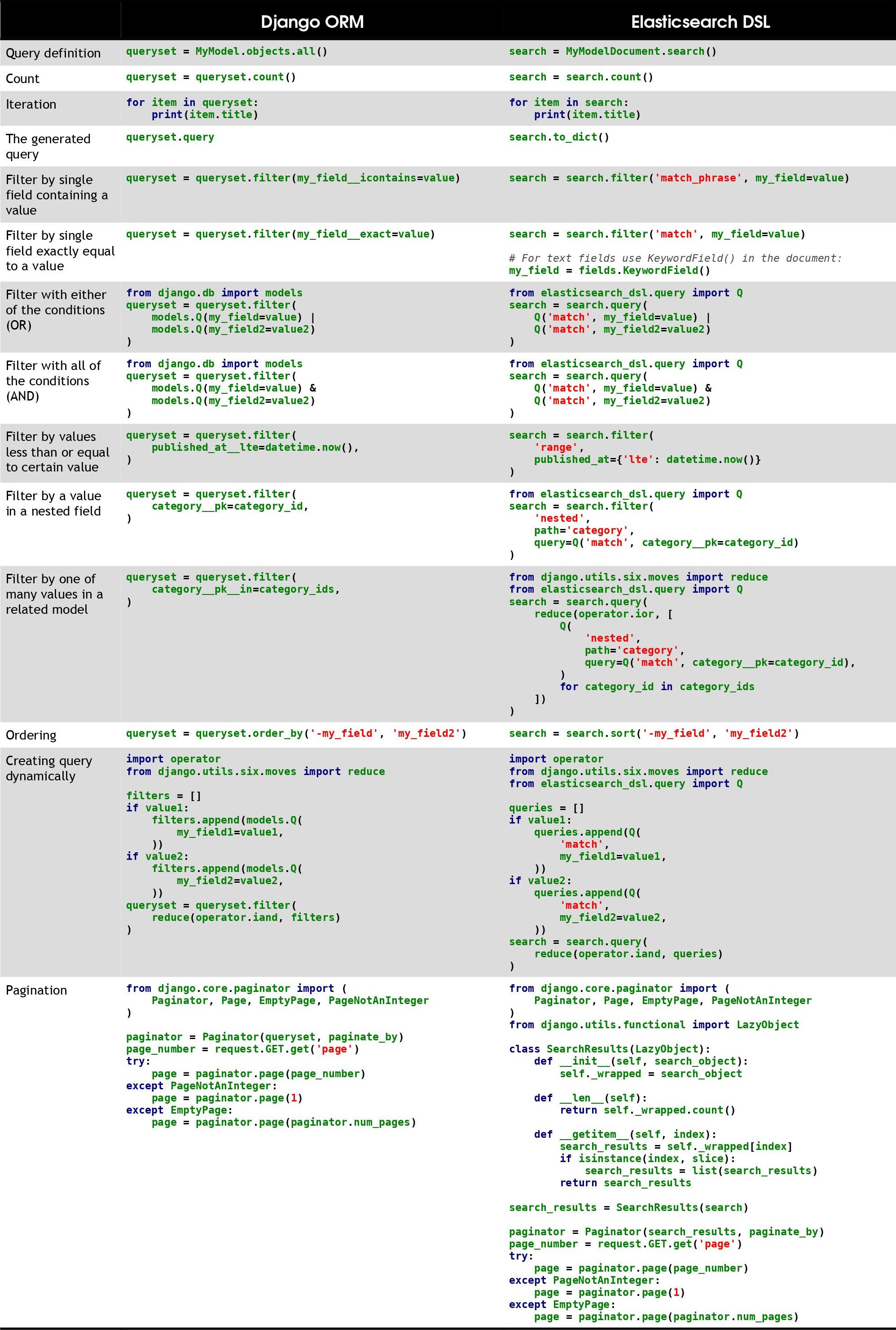

Elasticsearch DSL & Django ORM:

Data Type	Description
keyword	Not analyzed, used for exact matches
text	Analyzed for full-text search
binary	Binary data, encoded as base64

Data Type	Description
dense_vector	Vector with fixed dimensions
sparse_vector	Vector with variable dimensions
